Our Products

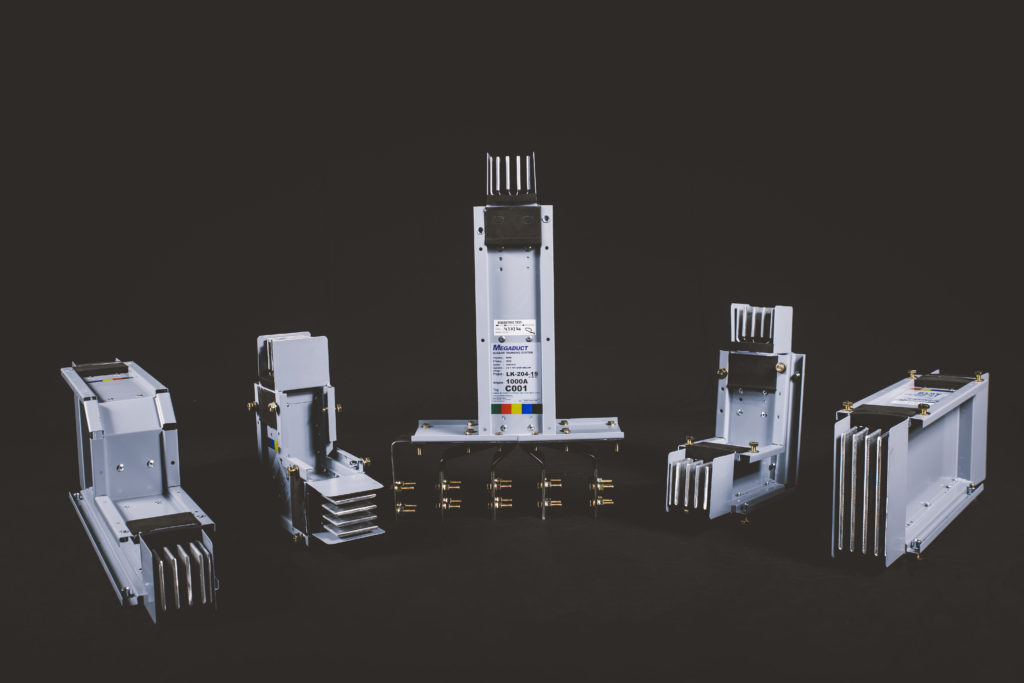

Busway Systems

Busway Systems

Innovus Solutions is the Authorized Distributor of “Megaduct” Electrical busway for Pakistan.

• Electrical busway systems are designed to protect critical systems, ensure continuous operations with full featured power solutions
• Electrical busway is a prefabricated electrical distribution system consisting of AL and CU busbars in a protective enclosure including
straight lengths, fittings, devices and accessories
• Linkk’s Megaduct sandwich bus ducts are engineered with precision and manufactured to meet the highest industry standards Our products are certified by leading international accreditation bodies including KEMA KEUR, UL, PSB TUV, CPRI, CCC, TERTEC, ASTA, CE, and SIRIM This ensures that our customers receive safe, reliable and high quality products
• Innovus Solutions always provide “Class H 180°C) electrical busway in “Epoxy Insulation” and remains in competition through out technically and commercially in order to facilitate its customers

Read More

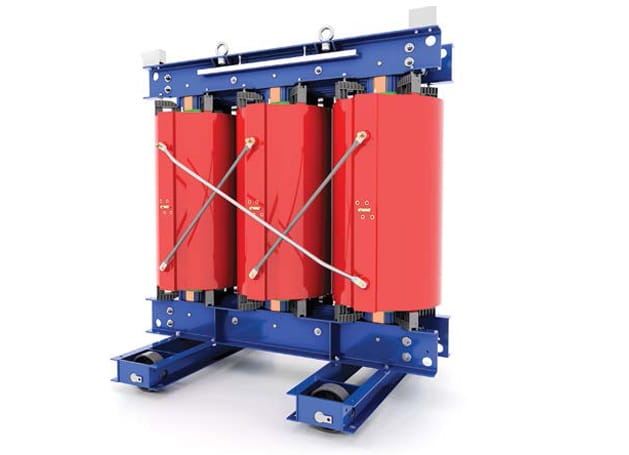

Drytype Transformers

Drytype Transformers

Innovus Solutions is the authorized distributor of ”Zelect” in Pakistan for Dry-Type Transformers. SG ( 10 series of non encapsulated H class dry type power transformers adopt the special process technology of German ( dry type transformers to ensure that the products fully meet the requirements such as fire prevention, waterproof ,environmental protection It is the ideal product for distribution systems and widely used in the subway, shipbuilding, mining, chemical, power companies and personnel intensive buildings as well as other special requirements of the occasion for safety

Technical Specifications

  • Non Flameable and Self Extinguished
  • Aesthetic Design
  • Humidity Resistant
  • Thermal classes F & H
  • Rated power of 100kvA to 30,000 kvA
Read More

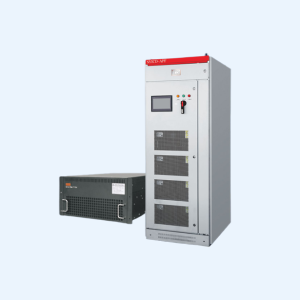

Active Harmonic Filter & Static VAR Generators

  • Active power filters:

    AHF: which can perform the job of harmonic elimination Active power filters can be used to filter out harmonics in the power system which are significantly below the switching frequency of the filter.
  • Provide Compensation for the Reactive Power.
  • Build in the high speed digital signal processing (technology that dedicate and calculate circuit in directive current and generate circuit in compensation current.
  • Modular Design and Easy to Expand
  • Rated Current 30/300A
  • Rated Voltage: 220V, 400V and 600V
  • Protection Functions: Over Voltage, Under Voltage, Over Current an Over Temperature.

  • Static VAR Generator

    Improve Low voltage dynamic and three phase unbalance compensation.
    Types: Wall mounted, Cabinet and Drawer Types.
    •Rapid response time is less than 10m/s
    •Modular design and easy to expand.
    •Wiring: Three phase four wire.
    •Power factor control Range: 1~1
    •Loss: <3%
    •Temperature Range: 5 C to 40 C
    •Compensation Current: 50~900KvaR
